Migfitt engineering works is a privately owned company established in 1982 by a team of Technocrats in Analytical instrumentation, whose sole proprietor is Mr. Abdul Samad Shaikh.

Manifold Systems



A. (Automatic)

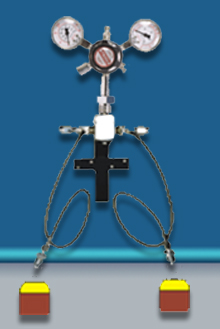

Electric (Digital) Automatic Mechanical Automatic Gas Changeover

Digital Automatic
(Low Pressure)
Mechanical Automatic (High Pressure)

Two types of changeover system are available which are low pressure electronic (digital ) automatic change over & high pressure mechanical automatic change over. We can connect two cylinders of same gases where cut off pressure or cylinder change over pressure can be programmed in digital automatic & cylinder automatically change from line 1 to line 2 as per program, where as in mechanical automatic , the cut off pressure is done by differential pressure regulators and the change over of the cylinder is done as per differential pressure set.





B.(Manual )

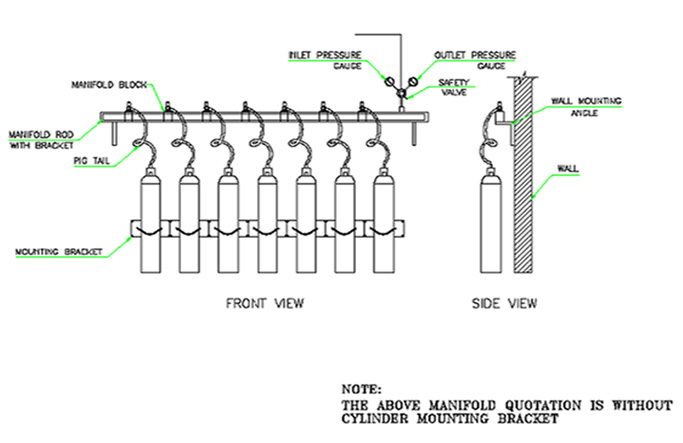

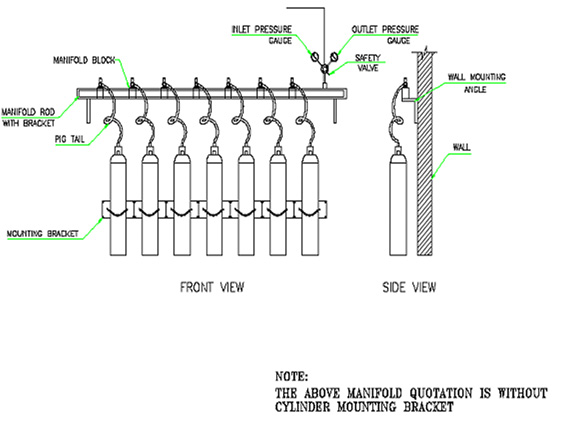

High Pressure Gas Manifold System

Manifold is available for Multiple Cylinders as well as for one cylinder. It is advisable to use when the consumption of Gas is large and replacement of cylinder is frequent. The advantage of using manifold is to change from empty cylinder to filled cylinder without disconnecting the gas. These are available in Brass / SS with wall mounting bracket In this case, we have to install only one regulator & protect cylinder regulator from damage at the time of changing cylinder. The manifold is also available for two or more cylinders .

We can also arrange for various type of connections of manifold system which is used for various purpose; for that we have attached a file below :-






Image Gallarys
